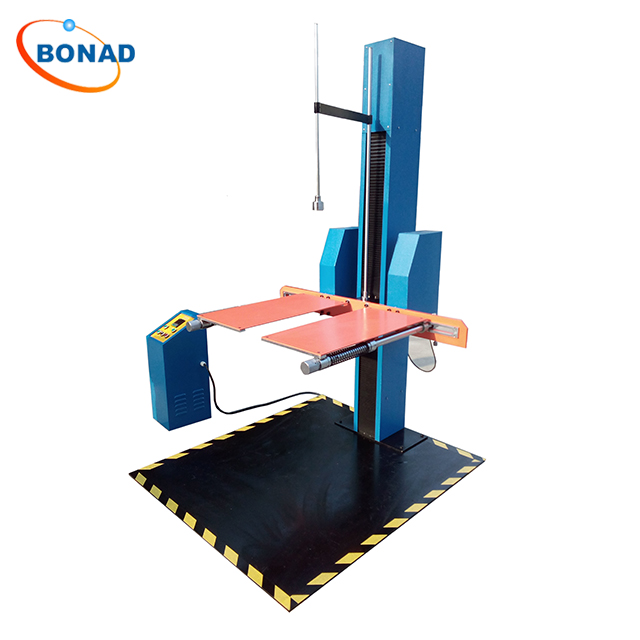

ISO 2248 Double-Arm Package Drop Tester  | Impact Resistance Testing Equipment
Name:ISO 2248 Double-Arm Package Drop Tester | Impact Resistance Testing Equipment
Type:BND-ZXD002
Manufacturer:Double-wing Drop Test Machine china Manufacturer.we could provide all kinds of drop test machine.
Product Description:

Double-Arm Package and Carton Drop Tester|BONAD

Overview

The Double-Arm Drop Tester which is also called double-Wing drop tester is an essential piece of equipment designed to evaluate the impact resistance strength of product packaging during transportation and handling. This machine simulates the conditions under which packaged products may be dropped, ensuring that they can withstand the rigors of shipping and handling.

Standards Compliance

Our Double-Wing Drop Tester adheres to multiple international standards, including:

*GB4757.5-84
*JISZ0202-87
*ISO2248-1972(E)

These standards ensure that our testing methods are reliable and globally recognized.

Test Principle

The principle behind the Double-Wing Drop Tester is straightforward yet effective. The test samples are lifted to a predetermined height and then allowed to fall freely according to a set state, colliding with a shock mesa. This process helps in evaluating the damage resistance of the packaging.

Characteristics

1. Impact Resistance Testing: The machine simulates the dropping damage that occurs during transportation, allowing you to set the drop point for various packaging angles or faces.
2. Stable and Reliable Operation: It uses double columns, spring buffers, and height gauge instructions for stable operation. The machine can perform edge, face, and angle drops efficiently.

Performance Parameters

Model

BND-ZXD002

Drop height

400~1500mm / 400~2000mm,

automatic adjustment, the height figure directly input in the controller

Display mode

LED digital display

Test load

0~65KG

Drop height error

±10mm

Maximum specimen size

W1000 × D1000 × H800mm

Bracket arm size

700 × 350mm

Drop base plate size

W1200× D1400× H10mm

Controller size

W300 × D300 × H800mm

Machine size

W1200× D1400× H2200mm

Horsepower

Raise 1/3HP, manually adjust width

Action way

Electric falling, manual reset

Machine weight

About 550KG

Machine power

AC 3ψ 5W 380V 50HZ 0.75KW

Conclusion

The Double-Wing Drop Tester is a robust and reliable tool for assessing the durability of product packaging during transport. Its compliance with international standards ensures accurate and consistent results, making it an invaluable asset for any business concerned with product integrity during shipping.


If you are looking for more different drop test machines for drop testing of small packages less than 80 kg, please check out our Pneumatic drop tester, Single-arm Drop Tester and Zero Distance Drop Tester, or directly reach us to learn more.
