IPX1 IPX2 Drip waterproof test equipment
Name:IPX1 IPX2 Drip waterproof test equipment
Type:BND-IPX12C
Manufacturer:We are specialized in producing all kinds of IPX1 to IPX9k waterproof test euipment, more detail please contact us. Tel/whatsapp:0086-13380391156
Product Description:

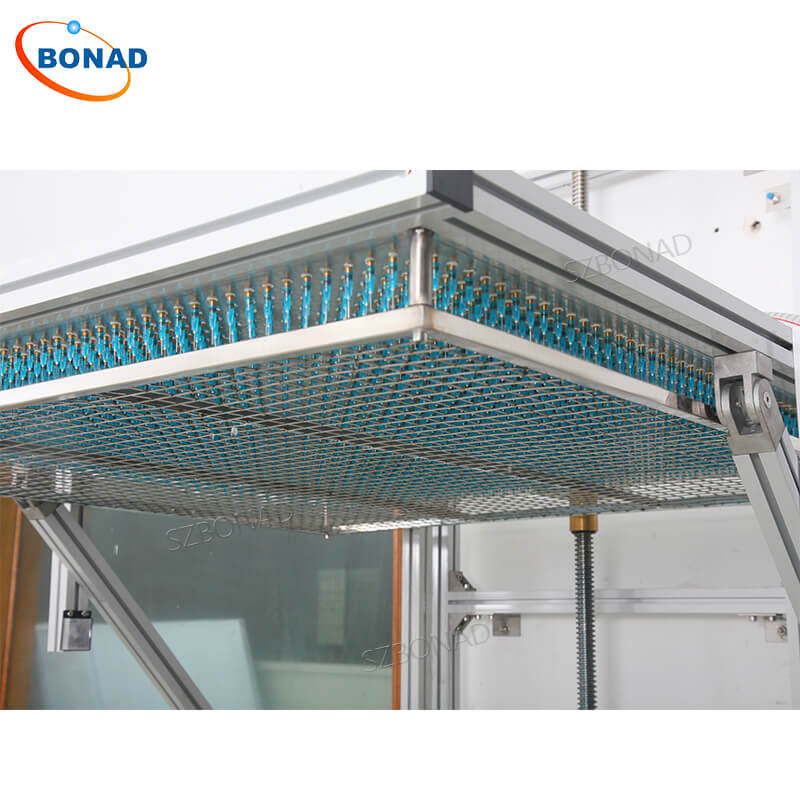

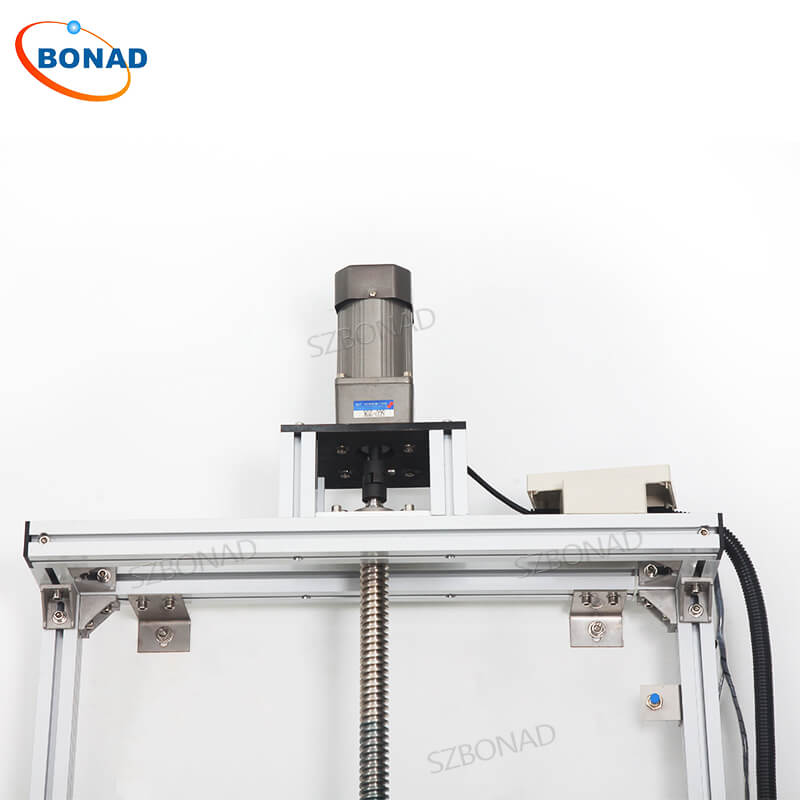

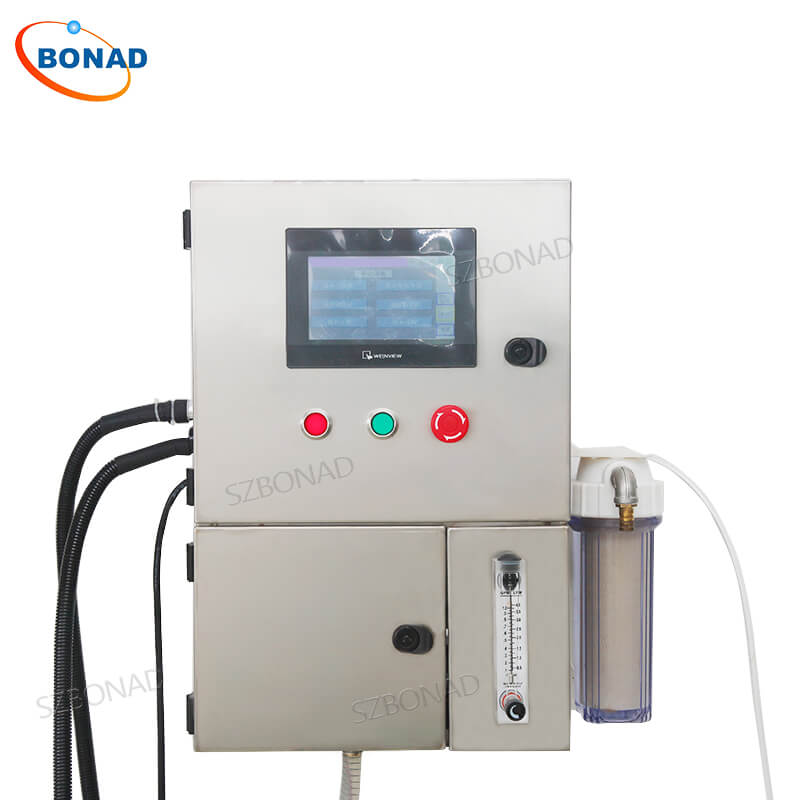

Wall Mounted Type lPX1 /IPX2 Waterproof Drip Test Equipment

Mdoel:BND-IPX12C


Test standard:

In accordance with IEC 60529: 2001 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "enclosure protection class (IP code)" 14.2.1,14.2.2 terms and Figure 3 and GB7000.1 "lamps Part I: General Requirements and test "9.2.3 requirements.

Drip Equipment use:

The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.


Technology parameter

No.

model

BND-IPX12C-800

BND-IPX12C-1000

1

Drop of rain area

800*800mmcan customize

1000*1000mmcan customize

2

Equipment outer dimensions

L1000*D1000*H2500mm

L1200*D1200*H2500mm

3

Turntable diameter

500 mm

600 mm

4

Dripping aperture

0.4mm

5

The distance between holes

20*20 mm

6

Rainfall

1-5mm/Min(±0.5mm/min)

7

Flow adjustment mode

manual setting

8

Drop of rain tank lifting height

1000*1800 adjustable

9

Turntable bearing

50KG

10

Turntable Speed

1 r/min

11

Turntable Adjustable Incline

0° or 15°

12

Turntable lifting range

Fixed

13

Testing time

0-999 min

14

Protective device

Leakage, water shortage, short circuit

15

Power (V)

220V

16

Power (KW)

1

17

Standards compliant

IEC60529:1989+A1:1999IPX1 IPX2)
