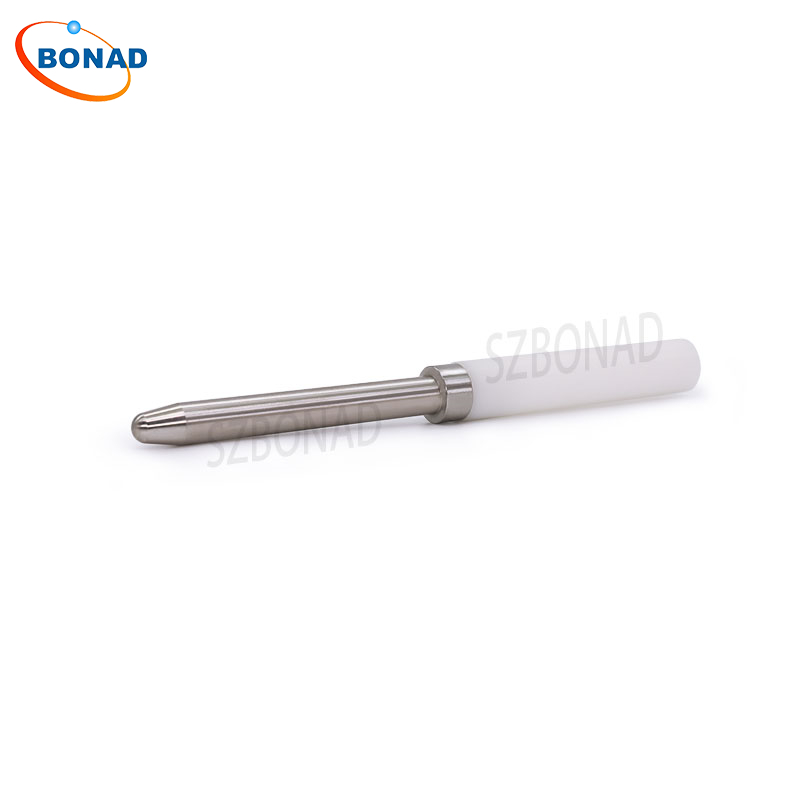

Basic Introduction:
1, According to UL1278、UL1026 and UL 507
2, Applicable to the apparatus structure and shell easy access to live parts of protective performance check
Technical parameters
1, Straight Finger Diameter:12.7mm(1/2 inch)
2, Straight Finger Total Length:101.6mm(4 inch)
3, The Head Length:14.3mm(9/16 inch)
4, The Head Radius: R 4.8MM(3/16 inch)
5, The Tail Diameter:19.1mm(3/4 inch)
6, According to UL507(135A）、UL1026（PA130A) 、UL1278（PA130A)

|
